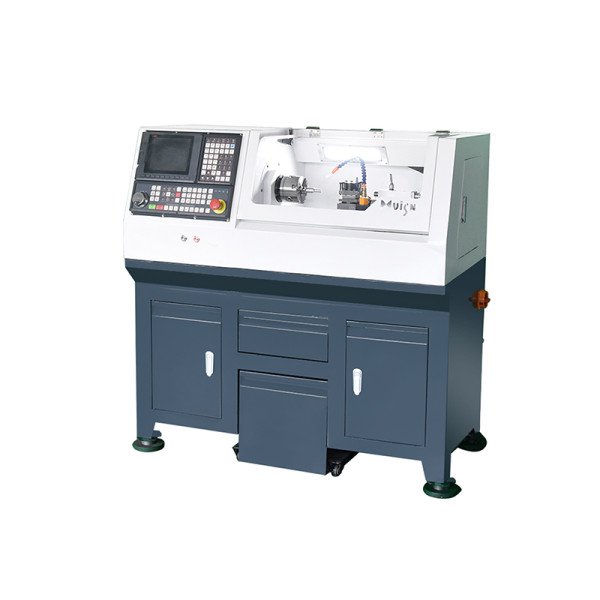

CNC210-CNC Machine Tool Precision Metalworking Mini Bench Lathe

CNC210-CNC Machine Tool Precision Metalworking Mini Bench Lathe

Item NO.: 20434748
lPEDESTAL
cast iron plate
Inquiry

Detail | FAQ

  • Product NameCNC210-CNC Machine Tool Precision Metalworking Mini Bench Lathe
  • Item NO.20434748
  • Weight370.0000 kg = 815.7104 lb = 13051.3659 oz
  • CategoryCNC machine tools> CNC210
  • BrandHUISN
  • Creation Time2022-10-30
  • Model Number:CNC210
  • Max. Swing Diameter (mm)：210
  • Spindle bore：26 MM
  • Customized logo(Min. order 1 cubic meter)
  • Customized packaging(Min. order 1 cubic meter)
  • Graphic customization(Min. order 1 cubic meter)
  • Shipping:Express/Ocean freight/Land freight/Air freight
  • Type:TURNING CENTER
  • Max. Length of Workpiece (mm): 250
  • Max. Spindle Speed (r.p.m):2000 r.p.m
  • Machining Capacity:Heavy Duty
  • Max. Weight of Workpiece(kg):10
  • Spindle Bore(mm):26
  • Width of bed (mm):300 mm
  • Spindle Motor Power(kW):1.1
  • No. of Spindles:2
  • Max. Turned Length (mm):300
  • Number of Axes:2
  • Travel (X Axis)(mm):90mm
  • Travel (Z Axis)(mm):300 mm
  • Positioning Accuracy (mm):±0.002
  • Repeatability (X/Y/Z) (mm):±0.01
  • Place of Origin:Anhui, China
  • Dimension(L*W*H):1185*930*1440mm
  • Brand Name:HUISN
  • Voltage:220V
  • CNC Control System:Siemens
  • Toolpost Brand:Hongda
  • Tool Post Stations:4
  • Weight (KG):370
  • Warranty:1 Year
  • Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Other
  • Key Selling Points:Automatic
  • Machinery Test Report:Provided
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 Year
  • Core Components:Bearing, Motor, Pump, PLC, Pressure vessel, Engine
  • Machine Type:Lathe Machine CNC
  • Control system:SIEMENS GSK FANUC (optional)
  • Color:As picture
  • After-sales Service Provided:Online support
  • After Warranty Service:Online support
  • Supply Ability：50 Set/Sets per Month
  • Packaging Details：plywood/carton
  • Port：ShangHai Sea Port
  • Lead time:1 piece=40 days，>1piece=To be negotiated
