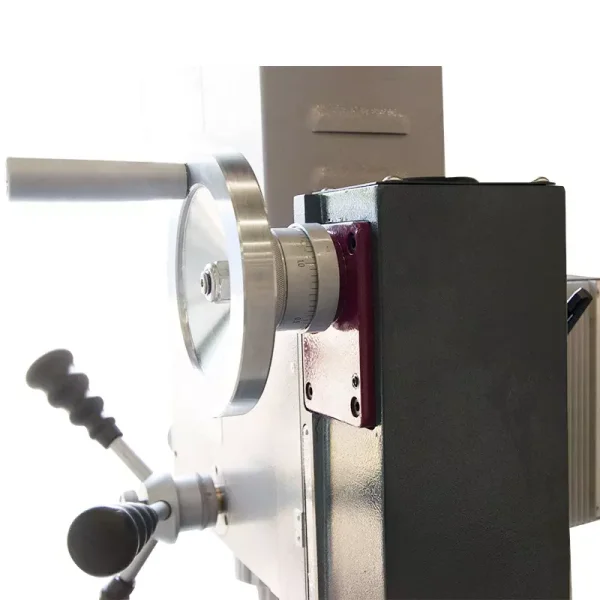

HUISN HX25VB High Precision Drilling and Milling Machine 500mm Table Size
Item NO.: 20435045
- Different models
- pedestal 500✖️180 pedestal 700✖️180
- accessories
- not add DRO 2axis DRO 3axis pedestal Automatic feeding device
Detail | FAQ
- Product NameHUISN HX25VB High Precision Drilling and Milling Machine 500mm Table Size
- Item NO.20435045
- Weight130.0000 kg = 286.6009 lb = 4585.6151 oz
- CategoryMilling & Drilling Machine> HX25VB-700
- BrandHUISN
- Creation Time2022-10-30
- Model Number:WMD25VB
- Max.drilling capacity:25mm
- Max.tapping capacity:M16
- Max.end mail capacity:63mm
- Range of rotation:50-2500pm
- Spindle taper:MT3/R8
- Variable speed method:infinitely variable speeds
- Spindle travel:50mm
- Swivel angle of headstock: ±90°
- Distance from spindle center to column：201mm
- Distance from spindle end to worktable:45-300mm
- Column stroke z：350mm
- T-slots：3✖️12mm
- （500mm）table size:500✖️180mm
- （500mm）worktable stroke X/Y:380✖️178mm
- （700mm）table size：700✖️180mm
- （700mm）worktable stroke X/Y：520✖️178mm
- Motor power:750W/220v
- Net weight /gross weight:(105/125)/(125/145)kg
- Model size:87✖️550✖️860mm
- Package size:700✖️700✖️840mm
- Customized logo(Min. order 5 pieces)
- Customized packaging(Min. order 5 pieces)
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- After-sales service provided:Online support
- After warranty service:Video technical support
- Spindle Motor Power(kW):750W
- Weight (KG):130
- Voltage:750W/ 220V
- Packaging Details：plywood/carton
- Shipping:Ocean freight/Land freight/Air freight
- Port：ShangHai Sea Port
- Lead time:1 piece=20days，>1 piece=To be negotiated
