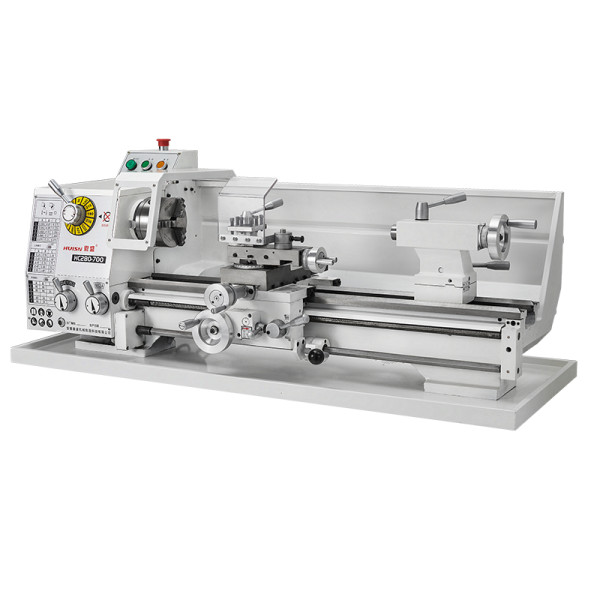

High precision bench mini lathe HC280-700
Item NO.: 20387231
- Product NameHigh precision bench mini lathe HC280-700
- Item NO.20387231
- Weight190.0000 kg = 418.8783 lb = 6702.0528 oz
- CategoryLathe> HC280-700
- BrandHUISN
- Creation Time2022-10-26
- Model Number:HC280-700
- Swing Over Bed：280mm
- Machining spacing：610mm
- Swivel diameter of tool holder：160mm
- Width of bed：150mm
- Spindle bore diameter：26mm
- Spindle taper：MT4
- Number of spindle shifting steps：12
- Spindle speed range：80-1600RPM
- Machining metric thread grades：15
- Machining metric thread range：0.25-2.5mm
- Maximum tailstock sleeve travel：85mm
- Machining inch thread grades：10
- Machining inch thread range：12-96 1/n
- Automatic feed range：0.08-0.15mm/Turn
- Tool holder stations：4
- Maximum travel of the tool holder pallet：65mm
- Maximum stroke of centre pallet：130mm
- Maximum stroke of large pallet：276mm
- Longitudinal feed range of the tool holder：0.03-0.375mm/r
- Tool holder lateral feed range：0.015-1.88mm/r
- Tailstock taper：MT2
- Main motor：220V/380V
- N/W：170kg
- G/W:190kg
- Package size：1300mm×600mm×600mm
- Port:Shanghai or Ningbo
- Customized logo(Min. order 5 pieces)
- Customized packaging(Min. order 5 pieces)
- Graphic customization(Min. order 5 pieces)
- Lead time:1 piece=7 days,>1 piece =To be negotiated
