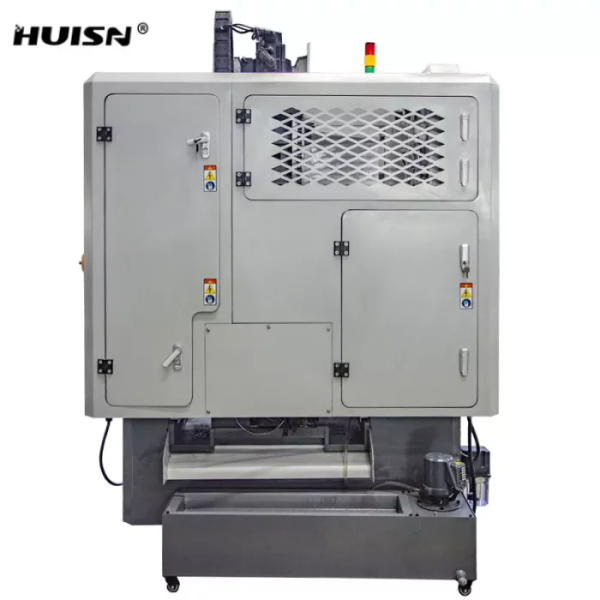

XH7121 small CNC drilling end mill sharpening three-axis nc drilling and milling machine
Item NO.: 20434652
Detail | FAQ
- Product NameXH7121 small CNC drilling end mill sharpening three-axis nc drilling and milling machine
- Item NO.20434652
- Weight1300.0000 kg = 2866.0094 lb = 45856.1505 oz
- CategoryCNC machine tools> CNC210
- BrandHUISN
- Creation Time2022-10-30
- Model Number:XH7121
- Work Table-Work Table Size(LxW)：700x210mm
- Work Table-Max Loading：200kg
- Work Table-T Slot(Width*Qty*Gap：14mmx4x49mm
- Ball Screw-X/Y/Z ：Ø25*Pitch-5mm C3
- Linear Guide Way-X/Y/Z(W*T)：28x26MM
- Travel-X-Axis：360mm
- Travel-Y-Axis：260mm
- Travel-Z-Axis：440mm
- Distance from Spindle Nose to Table：70~520mm
- Distance between Spindle Center to Column：270mm
- Spindle Speed：0~8000rpm
- Ways of holding tools：Disc spring clamp、Pneumatic pine knife
- Tool Holder Type ：BT30
- Automatic Tool Changer：8/10
- Cutting feed speed：0~4000mm
- Rapid Speed：10000mm
- Positioning Accuracy：0.02mm
- Repeatability Accuracy：0.01mm
- Main Spindle Motor (Servo)：2.2/3.7KW(4.9HP) --- 14/24NM
- X/Y/Z Motor（Servo）：1KW-6N.m/1.5KW-6N.m
- Weight（N/G）：1200/1300KG
- Dimension（LxWxH)）：1480x1400x2060
- Packing size（LxWxH)）（Polywood Case)：1660x1500x2000
- Customized logo(Min. order 1 piece)
- Customized packaging(Min. order 1 piece)
- Graphic customization(Min. order 1 piece)
- Lead time:1 piece =15 days,>10 pieces =30 days ,>20 pieces =To be negotiated
